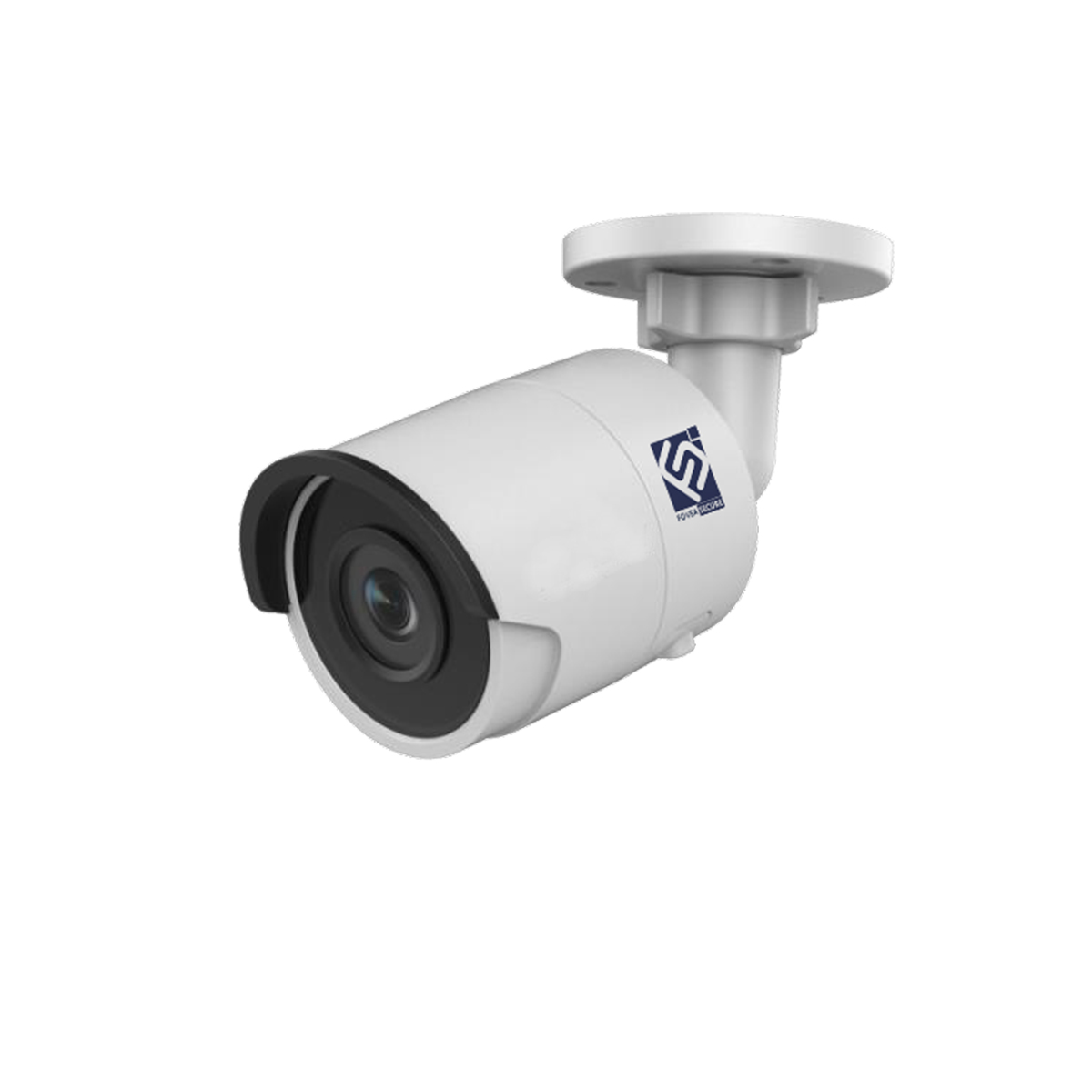

2 MP Ultra-Low Light Outdoor
FV-BFB25HFS
Key Features
- Up to 2 MP High Resolution
- Full 1080p @30 fps
- 2.8 mm / 4 mm / 6 mm / 8 mm Fixed Lens Options
- Ultra-Low Light, 0.008 lux, Dark Fighter technology
- H.265+, H.265, H.264+, H.264
- 120dB Wide Dynamic Rangec
- 3D Digital Noise Reduction
- 12 VDC and PoE (802.3af)
- EXIR 2.0 with up to 100ft (30 m) IR Range
- MicroSD Card Slot Supports 128 GB
- IP67 Protection
Specification
| Camera | |
|---|---|
| Image Sensor | 1/2.8 Progressive Scan CMOS |
| Min. Illumination | Color: 0.008 lux @(F1.6, AGC ON), 0 lux with IRs |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Lens | 108° (2.8 mm), 86.4° (4 mm), 52° (6 mm), 40° (8 mm) |
| Lens Mount | M12 |
| Iris | F1.6 |
| 3-Axis Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120 dB |
| Compression Standard | |
|---|---|
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264; Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Third stream: H.265+ / H.265 / H.264+ / H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Smart Feature-set | |
|---|---|
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 1 pre-defined virtual line supported |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual region supported |
| Object Removal Detection | Objects removed from a pre-defined region, such as exhibits on display |
| Unattended Baggage Detection | Objects left over in the pre-defined region such as baggage, purses, and dangerous materials |
| Face Detection | Human face appears in the image can be detected and trigger linkage |
| Image | |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Main Stream | 30 fps (1920 × 1080, 1280 × 960, 1280×720) |
| Sub-stream | 30 fps (640 × 360, 352 × 240) |
| Third Stream | 30 fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software |
| ROI (Region of Interest) | Separate support for one fixed region in main and sub streams |
| Day/Night Switch | Auto / scheduled |
| Network | |
|---|---|
| Network Storage | Support for microSD / SDHC / SDXC card (128G), local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Standard | ONVIF |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Interface | |
|---|---|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD / SDHC / SDXC slot, up to 128 GB |
| General | |
|---|---|
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), Humidity 90% or less (non-condensing) -22° F to 140° F (-30° C to 60° C), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 30% |
| IR Range | Up to 100 ft (30 m) |
| Protection Level | IP67 |
| Dimensions | Camera: Ø 2.76" x 6.1" (Ø 70 x 155.03 mm); Package: 8.5" x 4.76" x 4.65" (216 mm x 121 mm x 118 mm |
| Weight | 0.9 lbs (410 g) |
